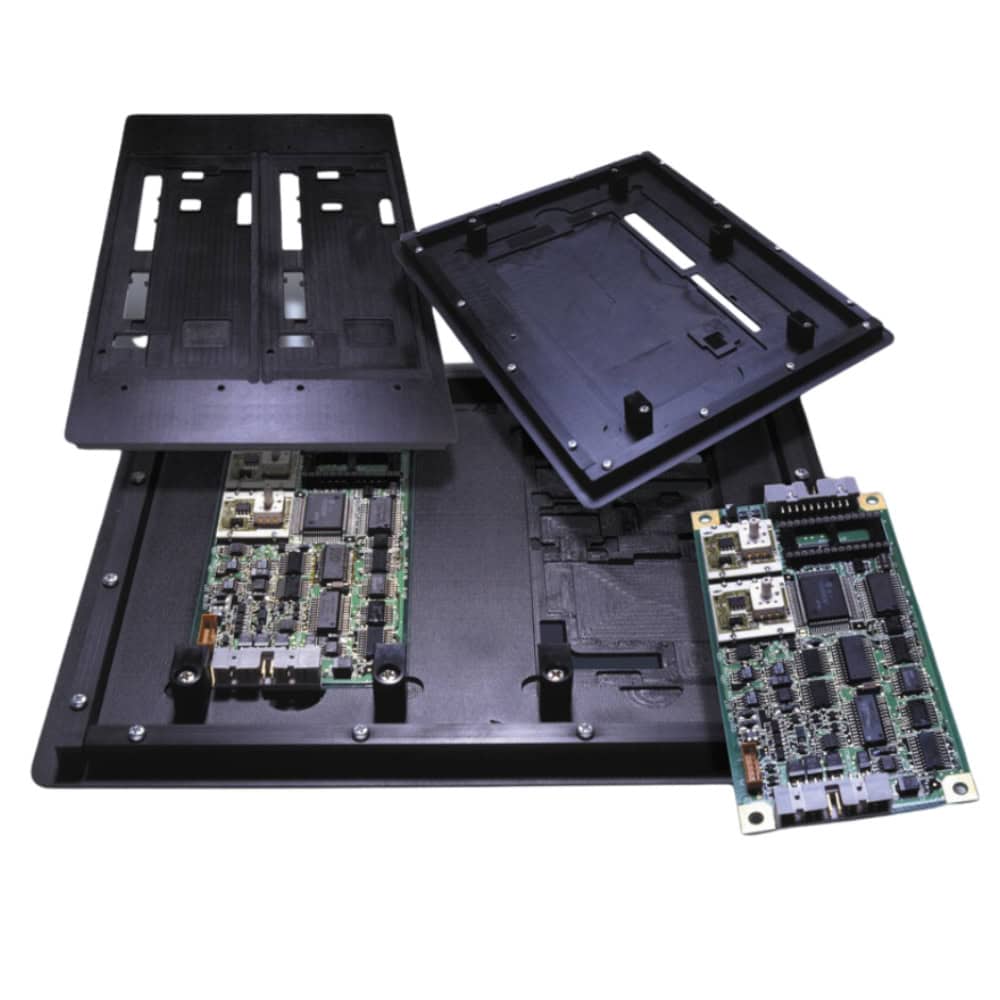

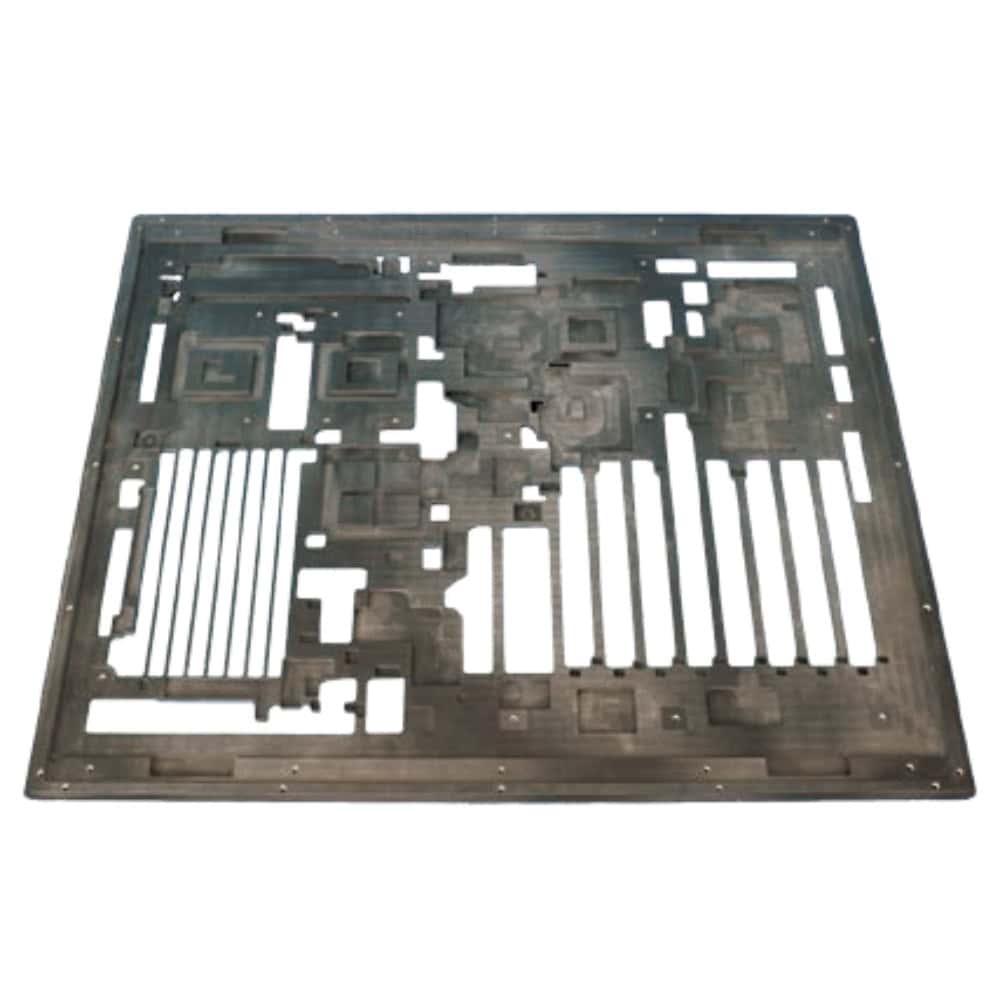

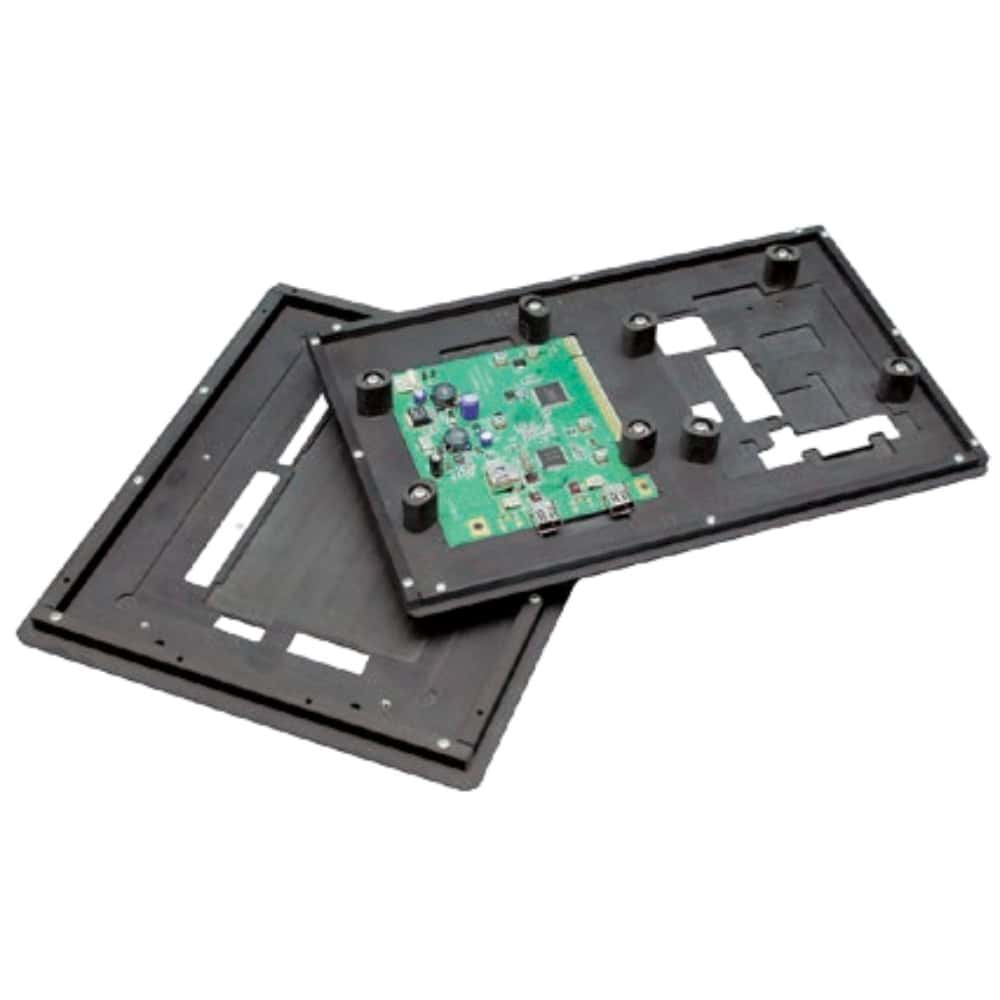

Ricocel ES-3261A Solder Pallet is a laminate material comprising glass cloth and a highly chemical-resistant epoxy resin. This material exhibits exceptional durability under high temperatures and when exposed to lead-free soldering flux chemicals, surpassing other composite materials. It is designed to be ESD safe, effectively shielding components from electrostatic discharges, and finds extensive use as a PCB carrier or solder pallet in various soldering processes.

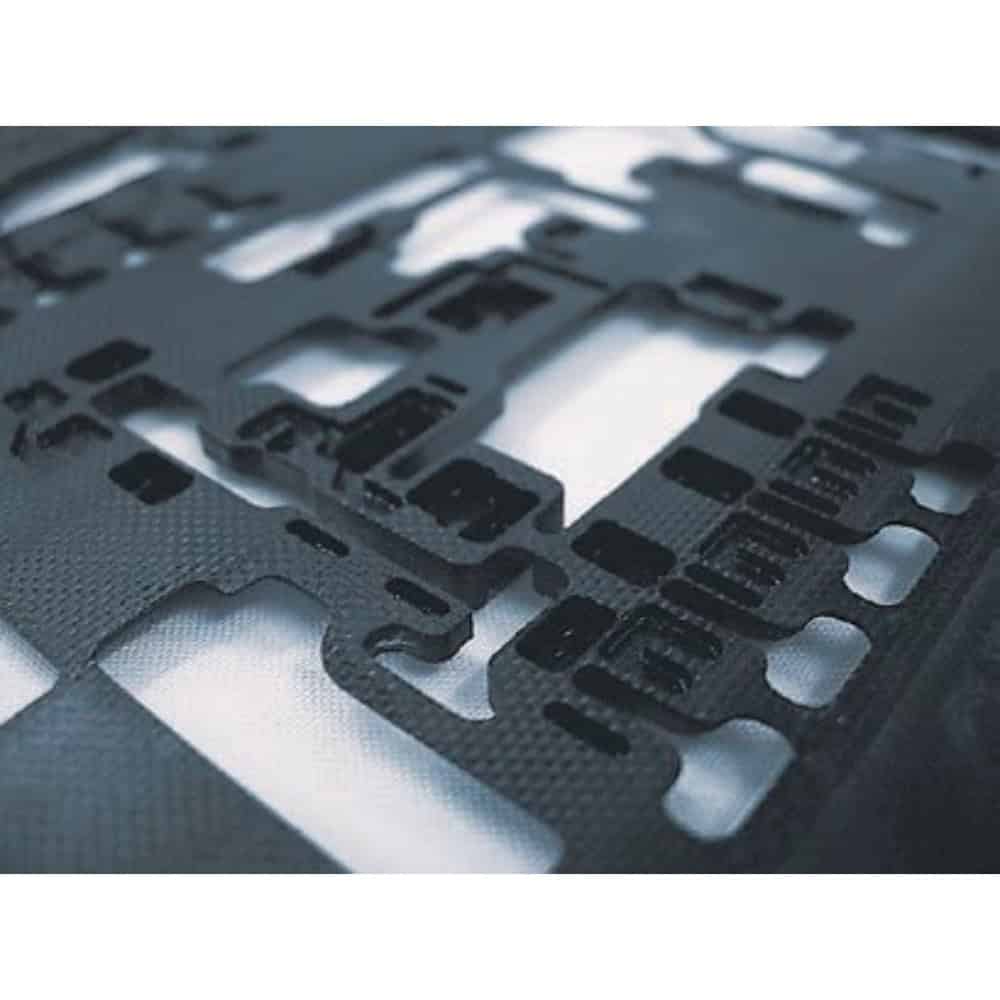

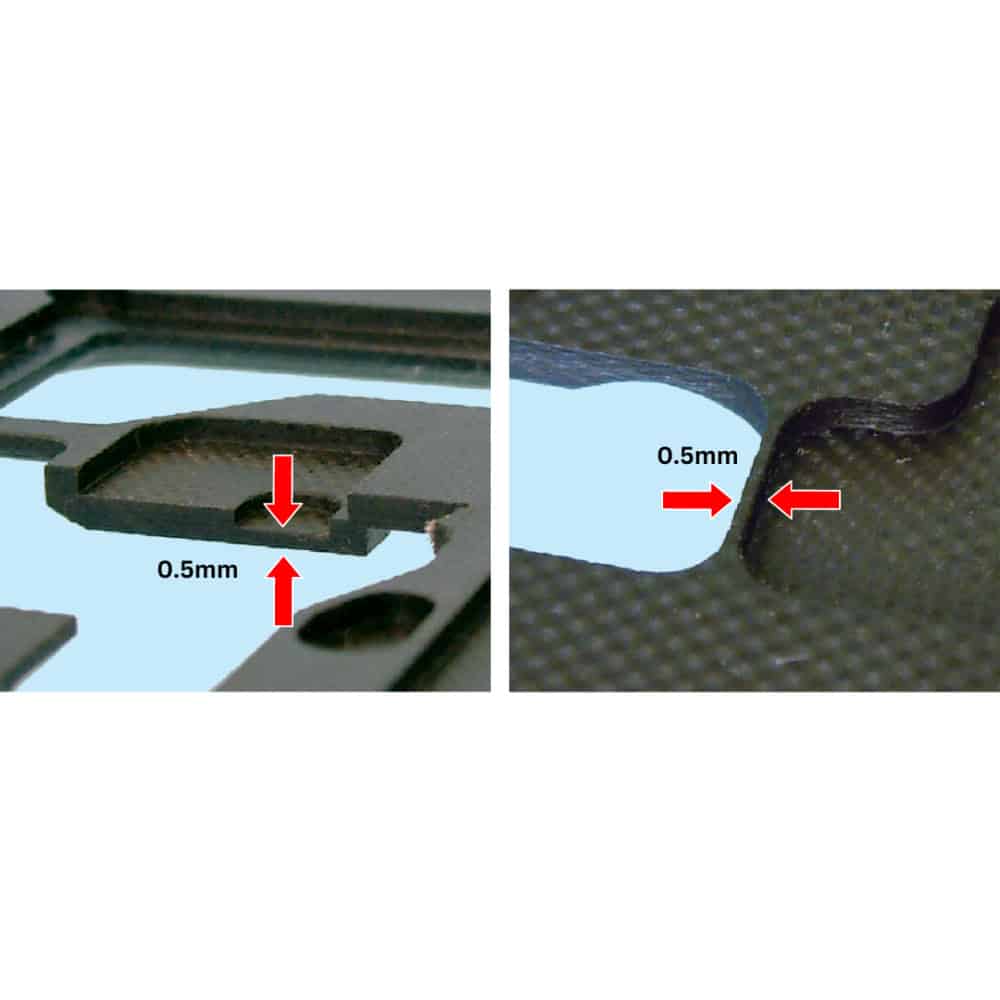

Through rigorous testing, Ricocel Solder Pallet has demonstrated outstanding performance in dimensional stability, resistance to water absorption, and protection against chemical attacks such as flux. Its machining capabilities are notably superior to those of alternative composites, allowing for precision machining of thin walls and pallet bottoms down to 0.5mm thickness. Ricocel Solder Pallet also prolongs the lifespan of soldering tools, ensures structural stability for accurate soldering processes, and supports flexible design options, including thin-walled configurations.
Applications for Ricocel ES-3261A Solder Pallet include full solder wave processes, SMT and selective soldering processes, component insertion, SMT paste soldering, SMT placement, reflow soldering, and PCB testing.
| Product code | Nominal size (mm) | Shipping size (mm) | Guaranteed size (mm) | Standard thickness (mm) |
| ES-3261A | 2040×1200 | 2050×1220 | 2040×1200 | 2.0〜15.0 |
| Product code | Thickness (mm) | Tolerance（mm) |
| ES-3261A | ||
| 2 | 2.0 ± 0.1 | |
| 3 | 3.0 ± 0.1 | |
| 4 | 4.0 ± 0.1 | |
| 5 | 5.0 ± 0.1 | |
| 6 | 6.0 ± 0.1 | |
| 8 | 8.0 ± 0.1 | |
| 10 | 10.0 ± 0.1 | |
| 12 | 12.0 ± 0.1 | |
| 15 | 15.0 ± 0.1 |
