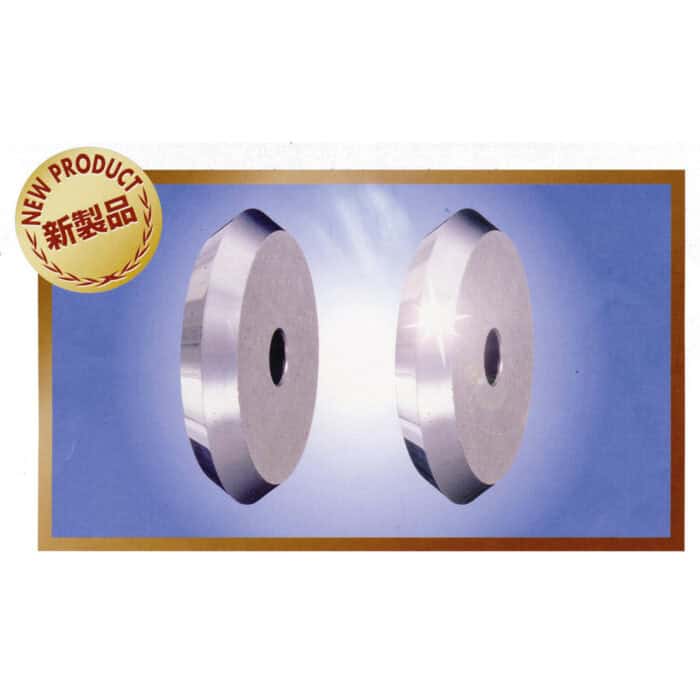

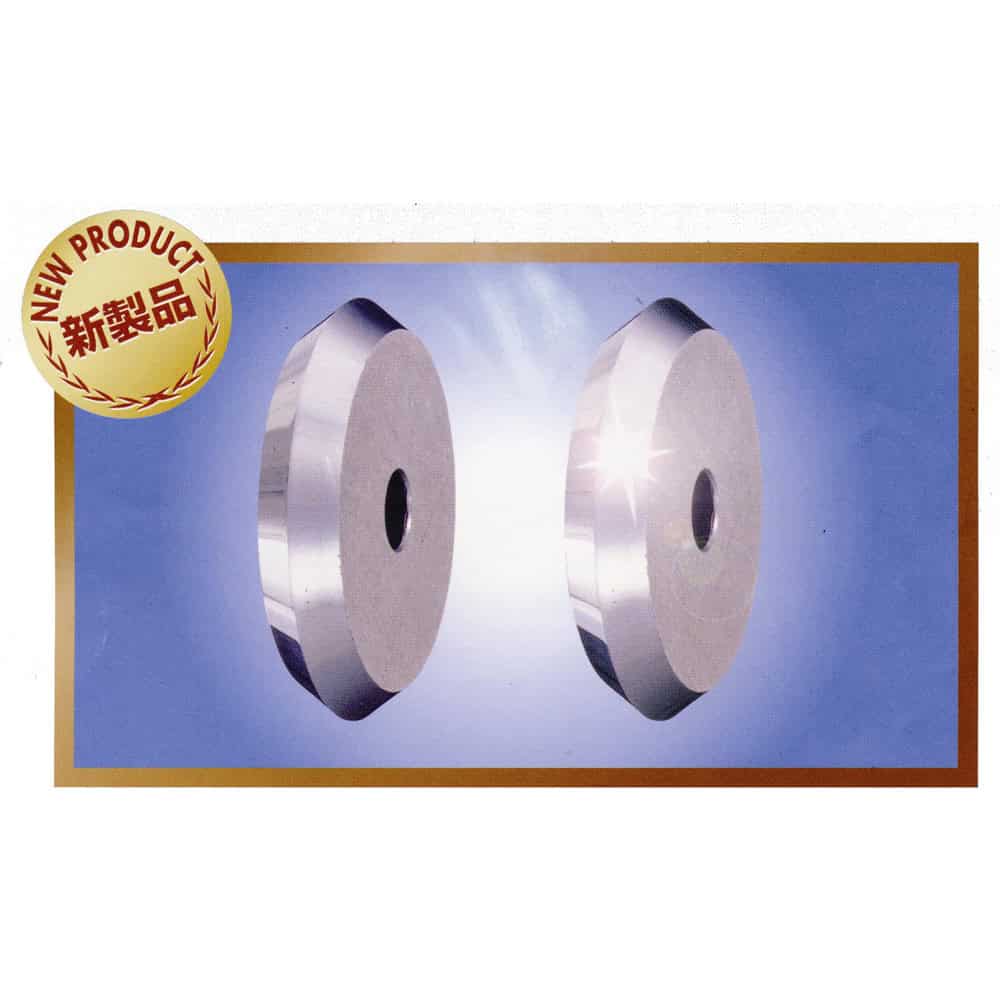

Cutting Wheels
The wheels produced by Toyo are electric dis-charge-ground processed precision wheel. They are ideally suitable for cutting industrial glass but also liquid crystal glass, quartz glass, tabular glass, and hard glass, which were difficult with conventional wheels.
Category: Glass Cutting Wheel
Tag: TOYO
Related products
Cutting Wheel with Color Plastic Holder
Wheels holder are produced by extremely high precision technology to enable to bring out the full cutting performance of the wheel. We supply the most suitable product for each type of various scribe machines.
Colour | Wheel Angle | Glass Thickness |
Light brown | 120° | 1mm-4mm |
Blue | 125° | 2mm |
Yellow | 130° | 3mm |
White | 135° | 1.5mm-5mm |
Gray | 140° | 2.5mm |
Black | 145° | 6mm-8mm |
Green | 150° | 10mm-12mm |
Brown | 155° | 16mm-19mm |
Red | 155° | 16mm-19mm |
Light green | 160° | 22mm-25mm |
Light gray | 160° | 22mm-32mm |
Light Blue | 165° | 32mm |
